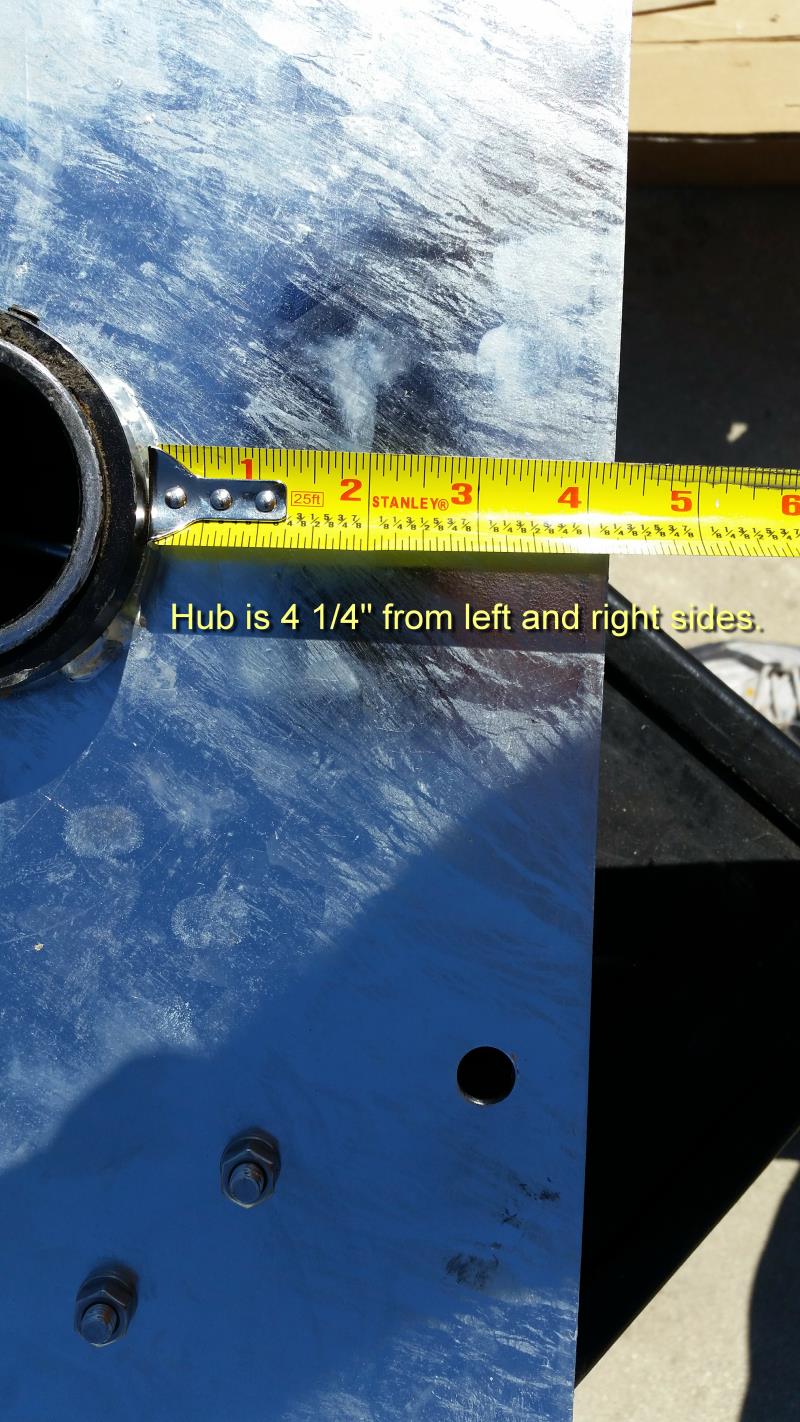

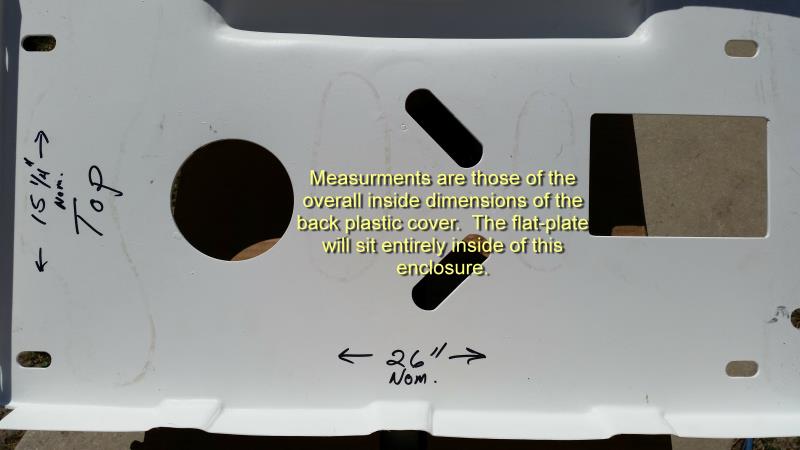

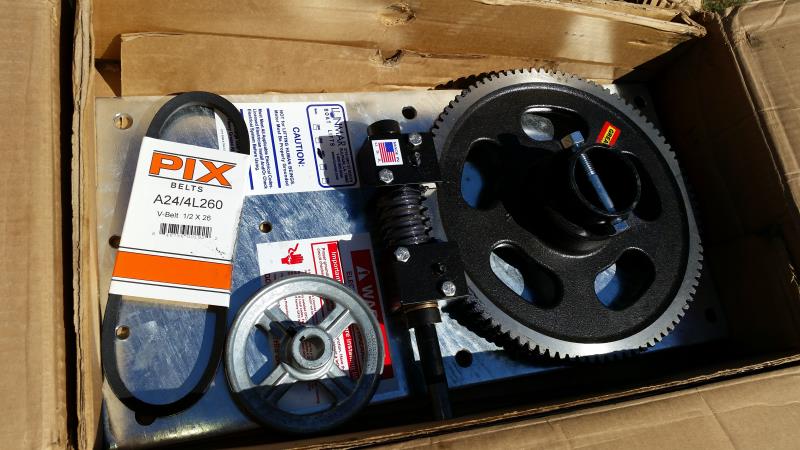

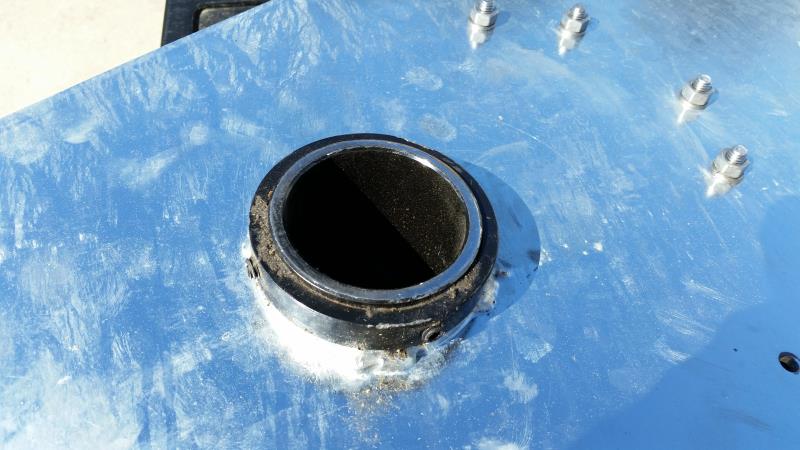

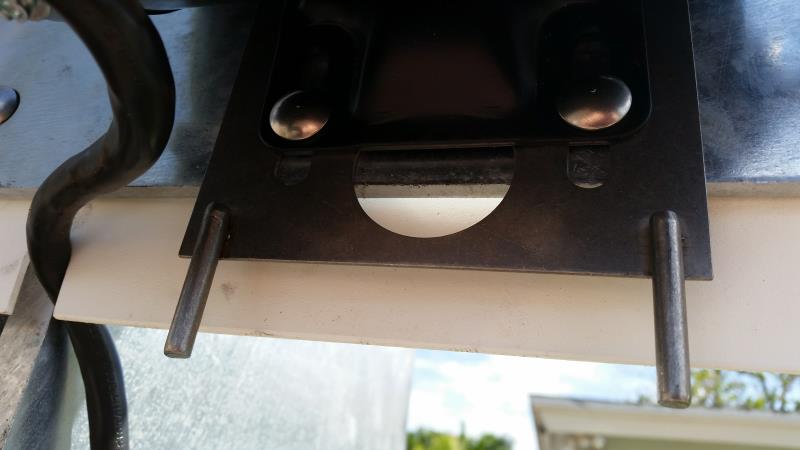

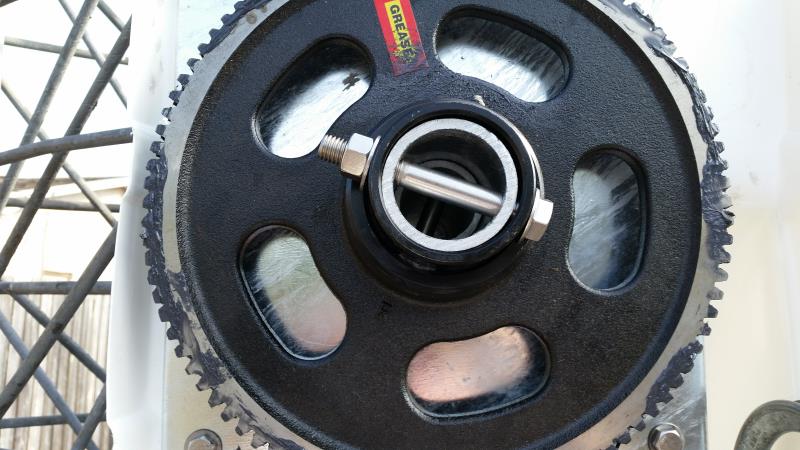

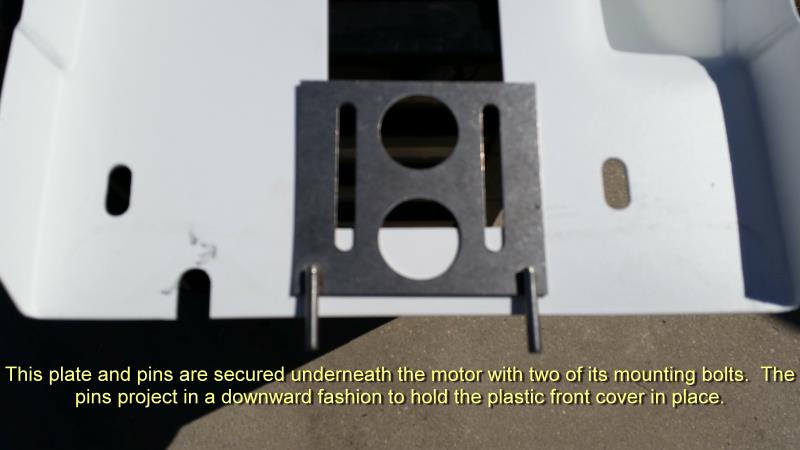

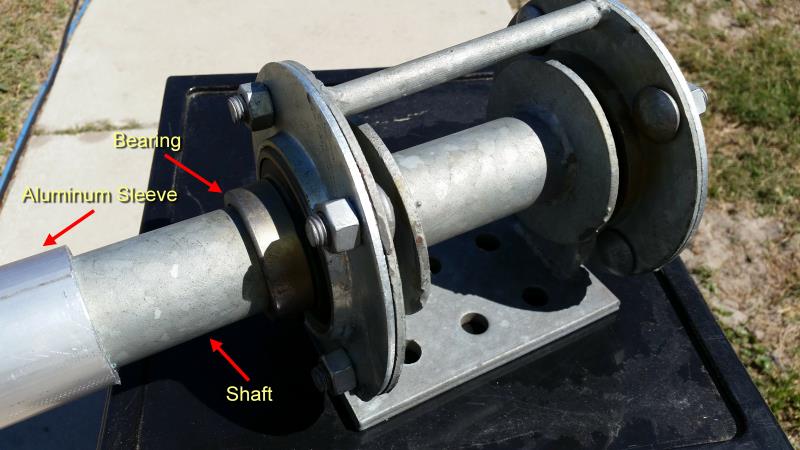

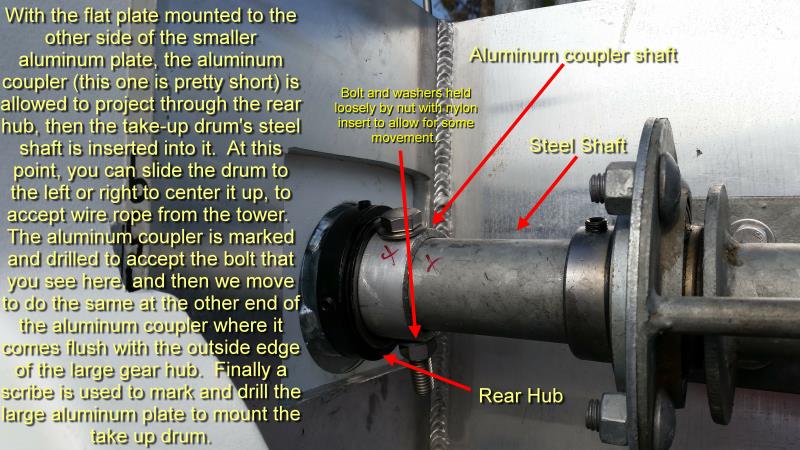

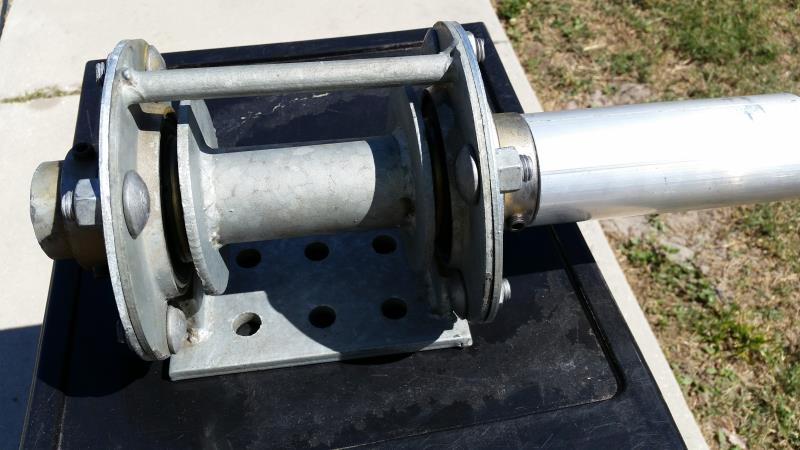

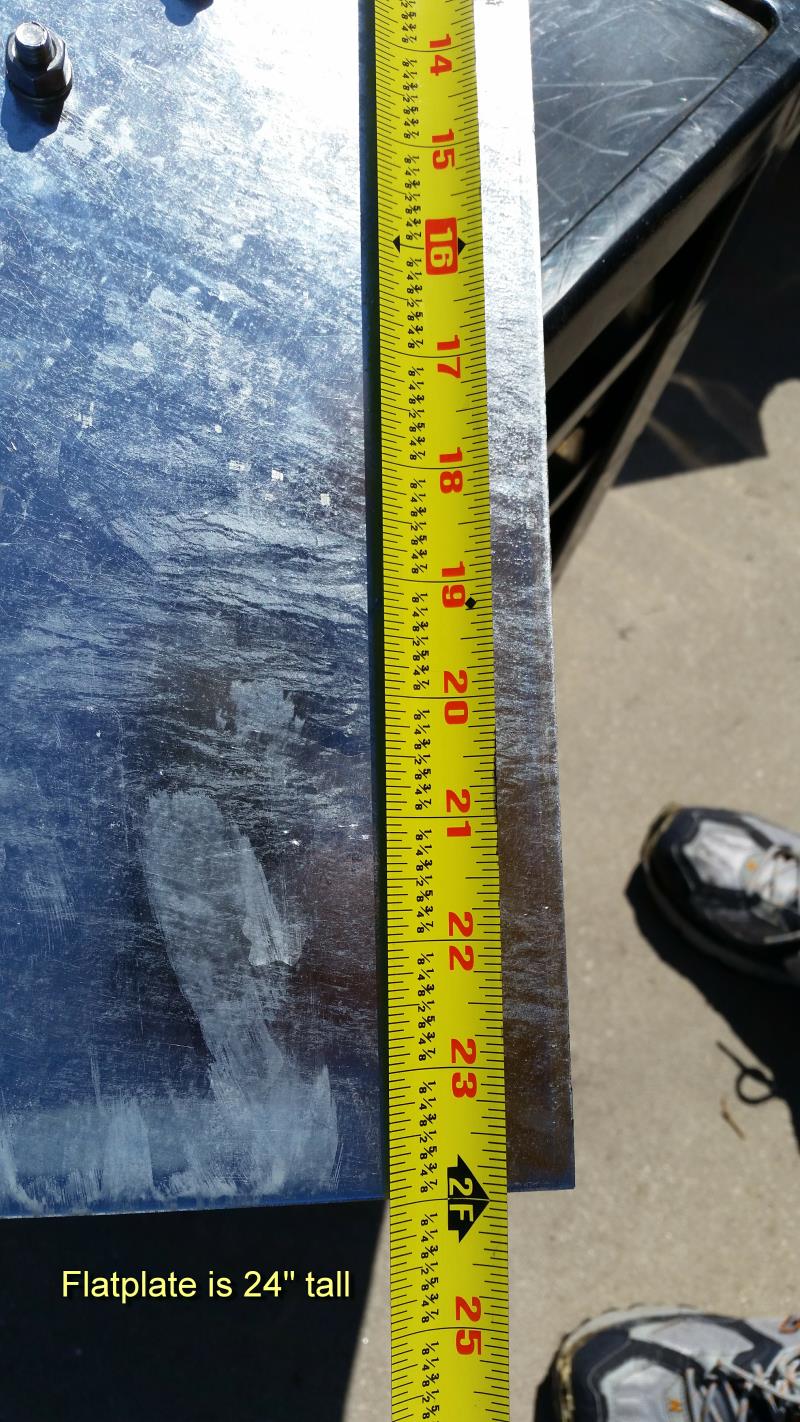

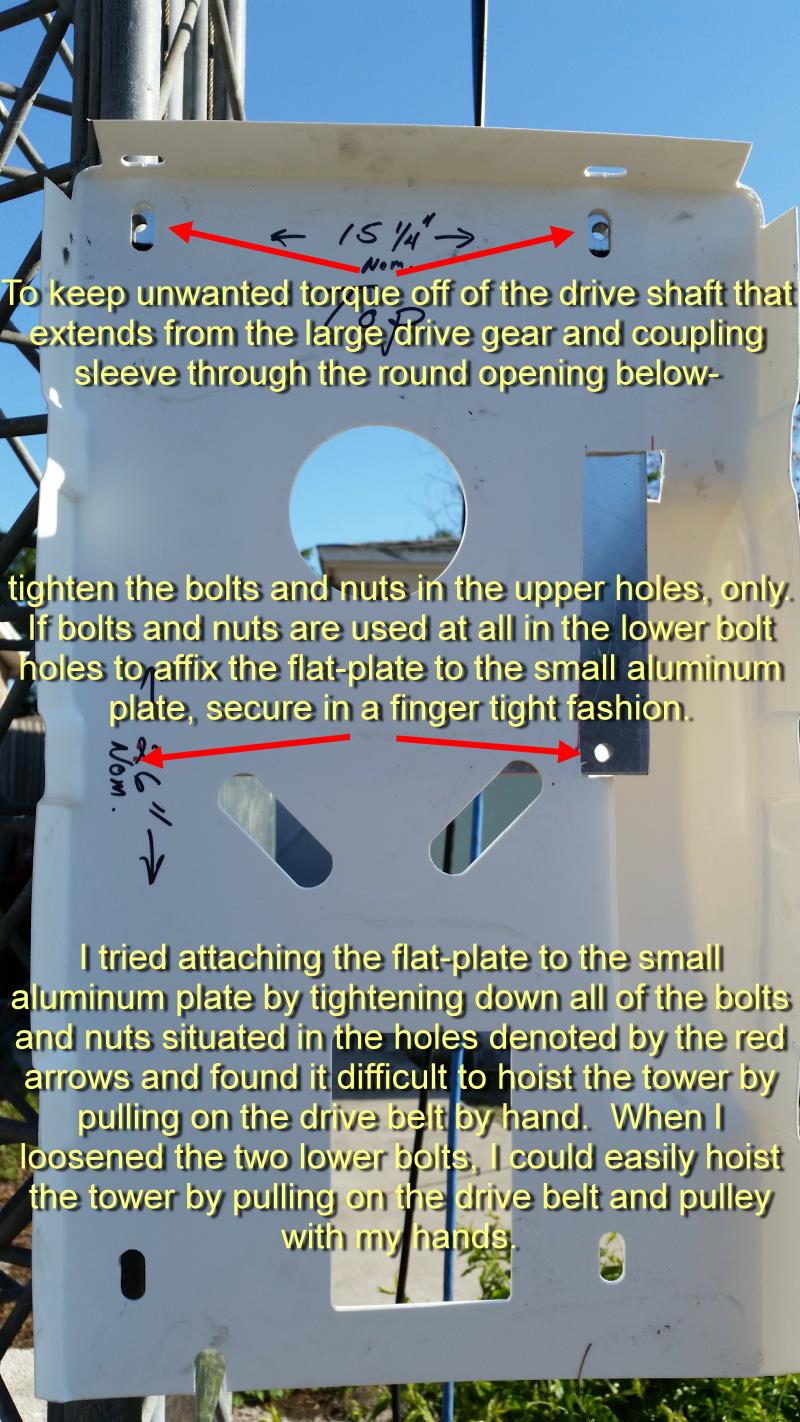

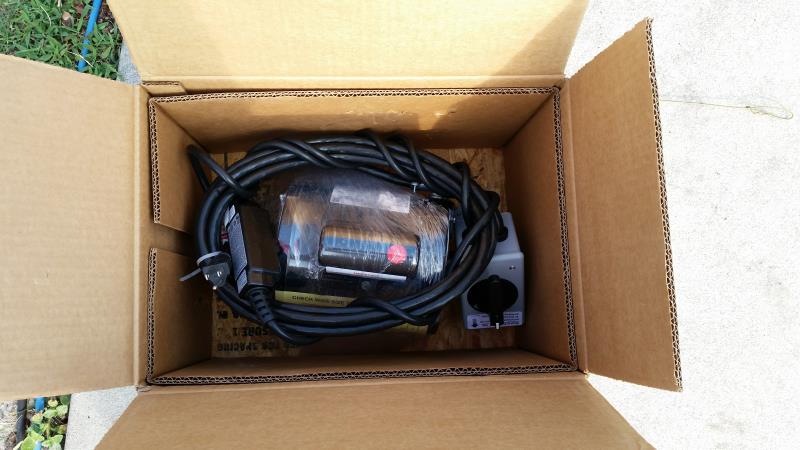

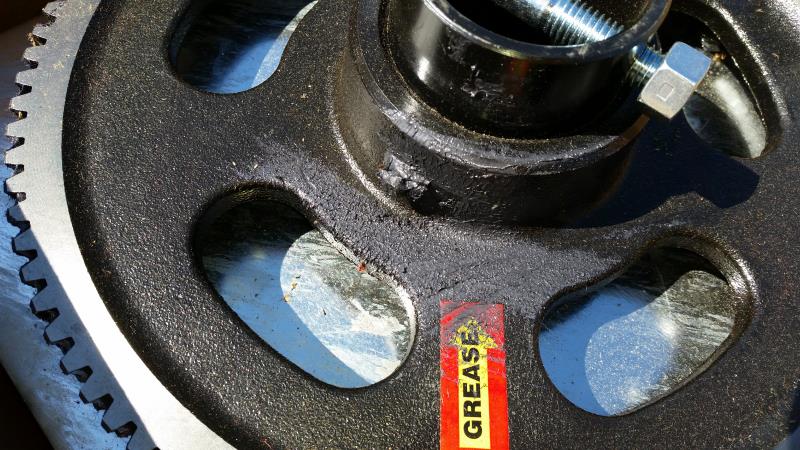

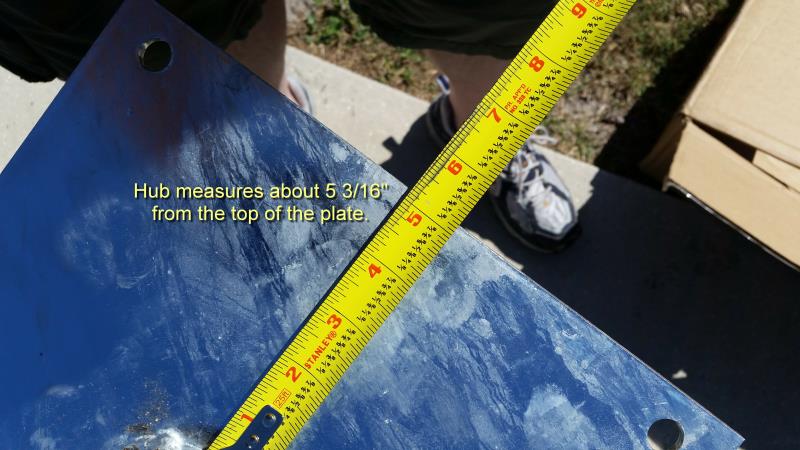

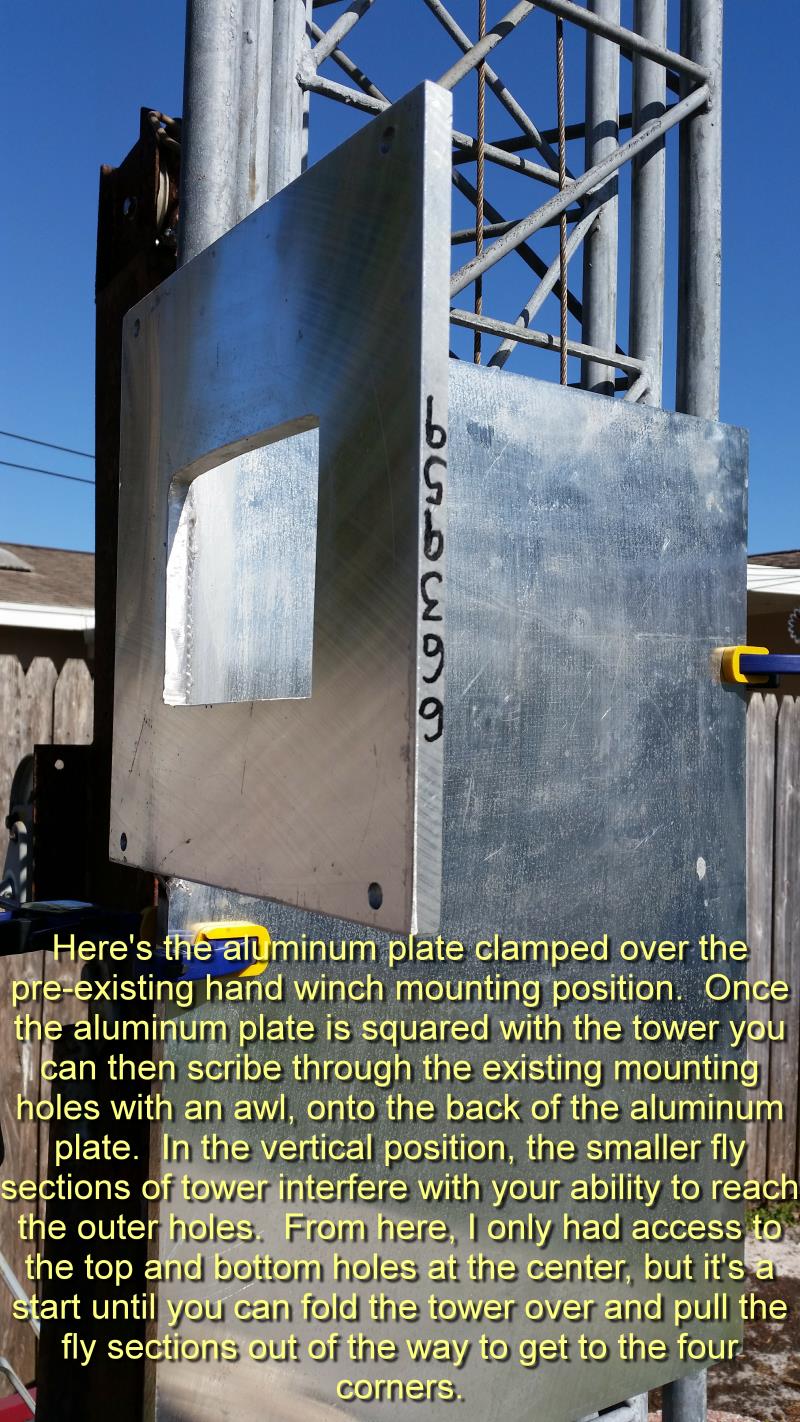

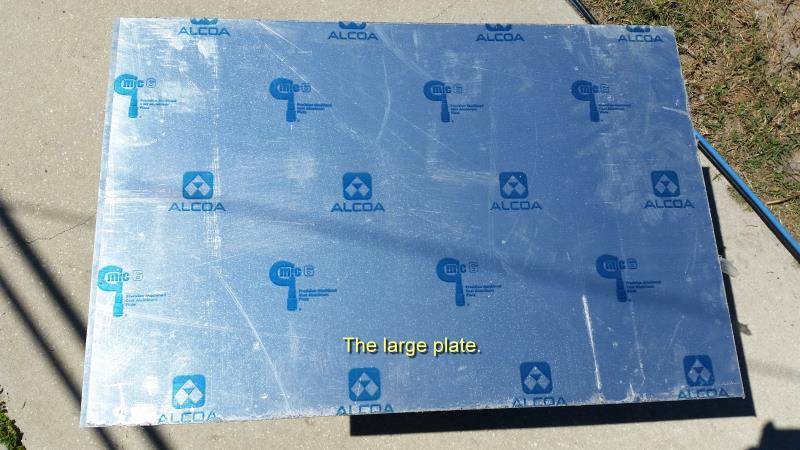

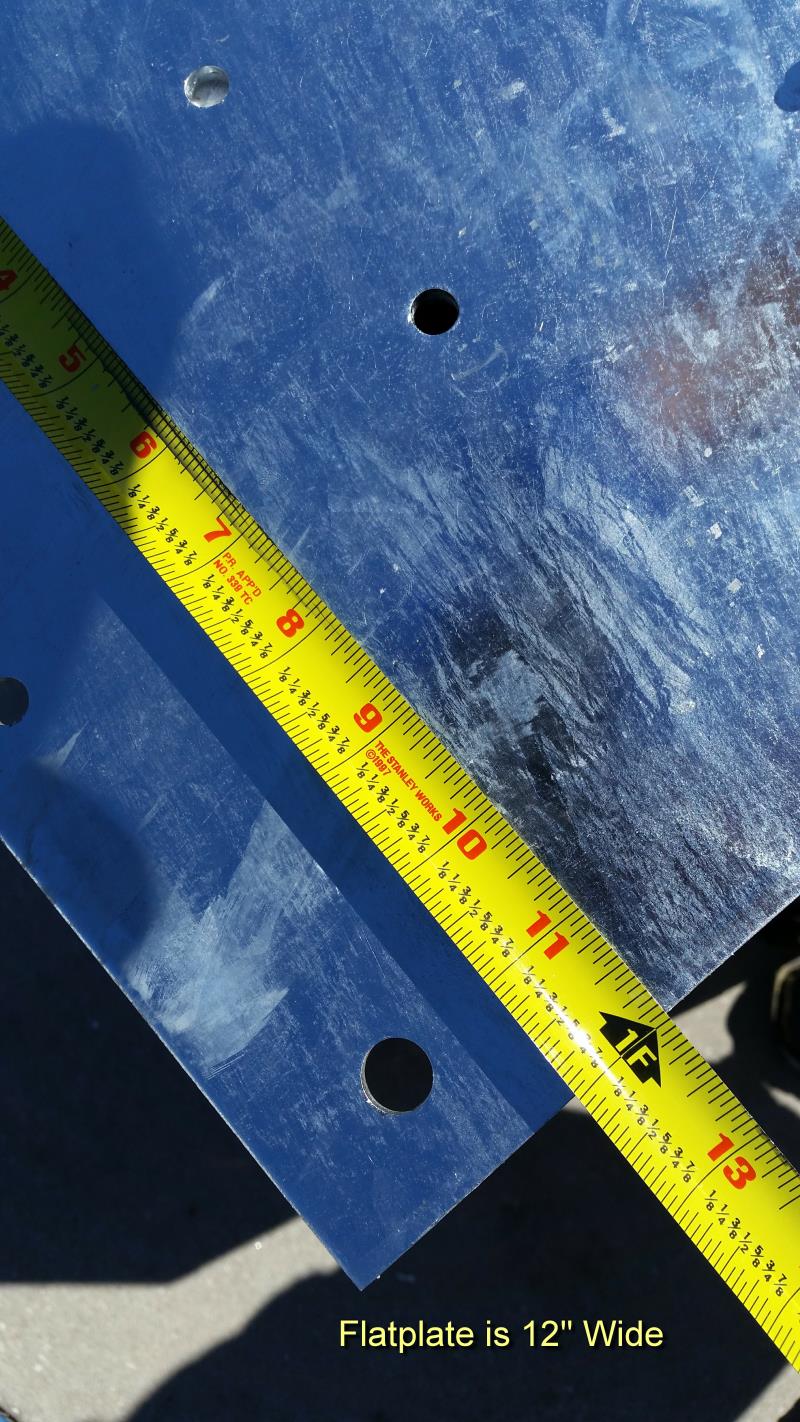

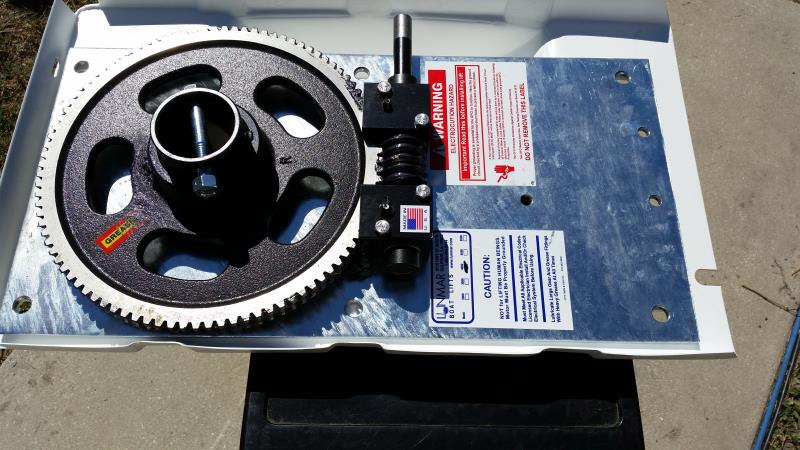

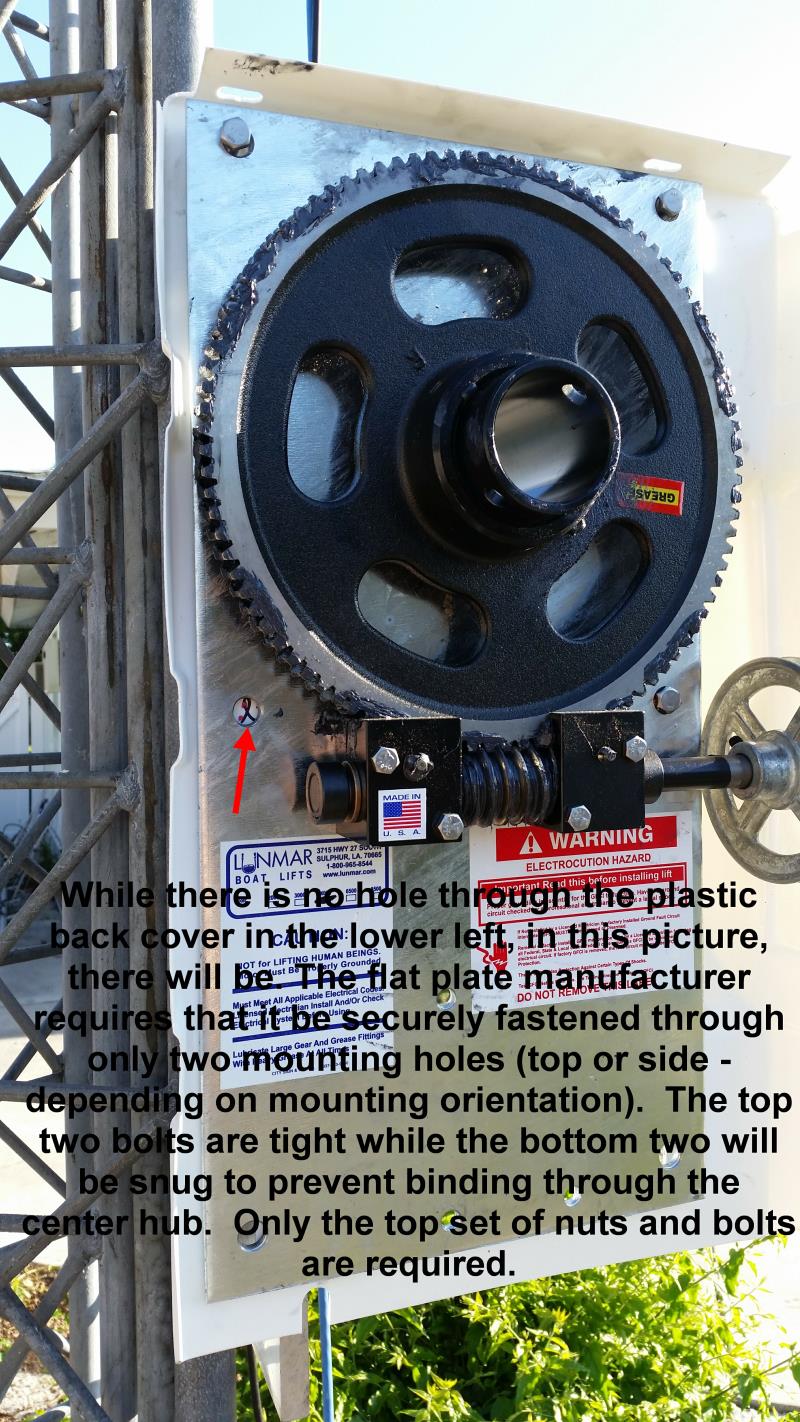

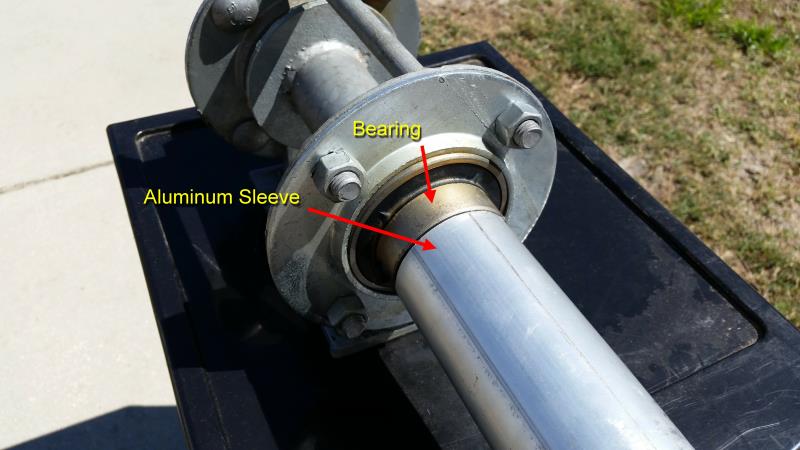

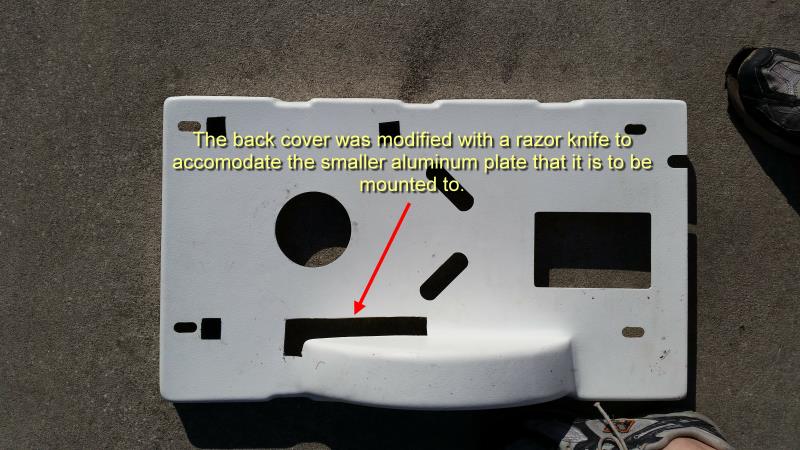

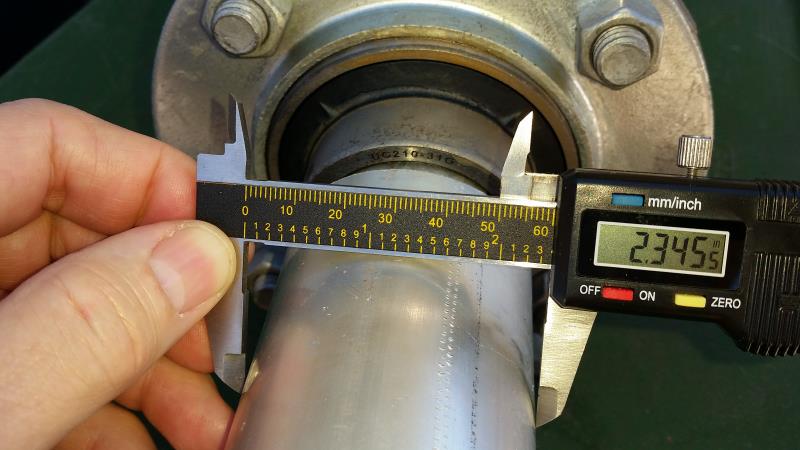

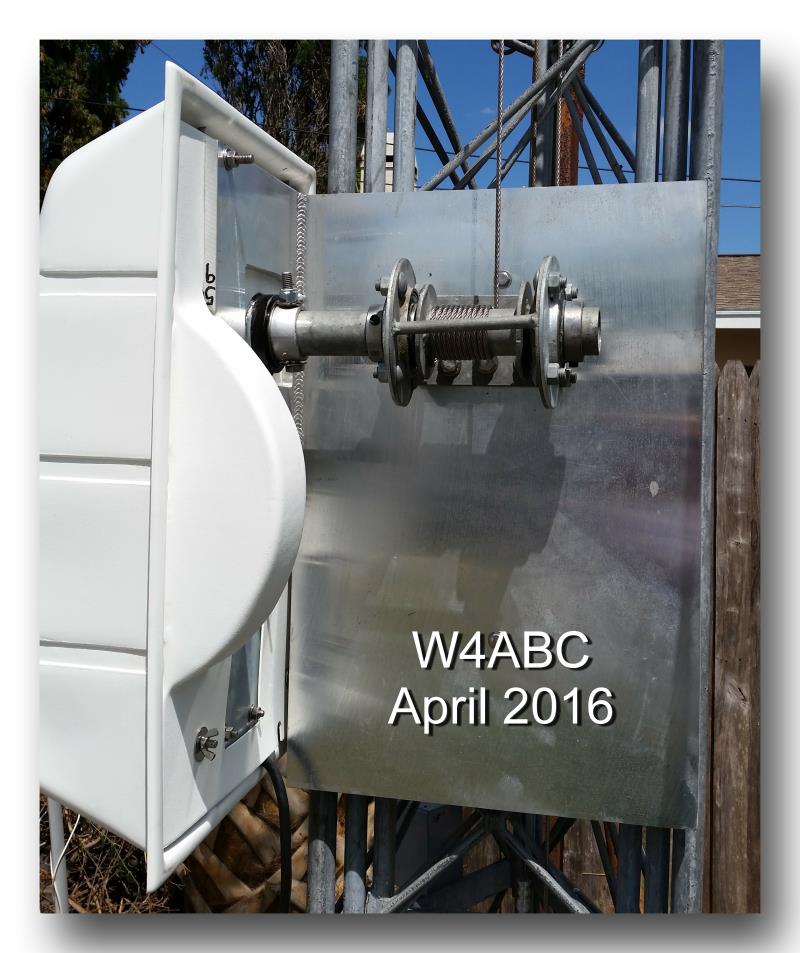

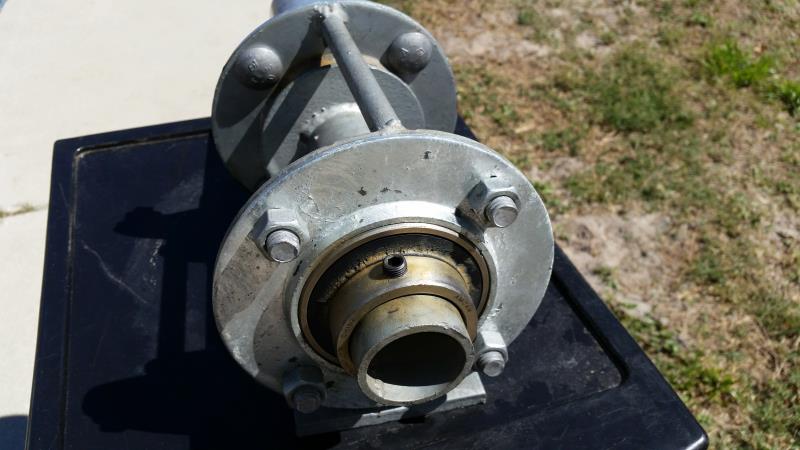

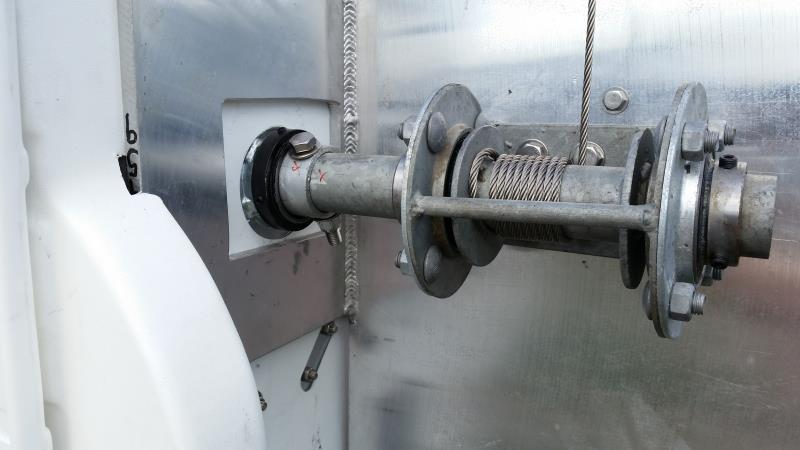

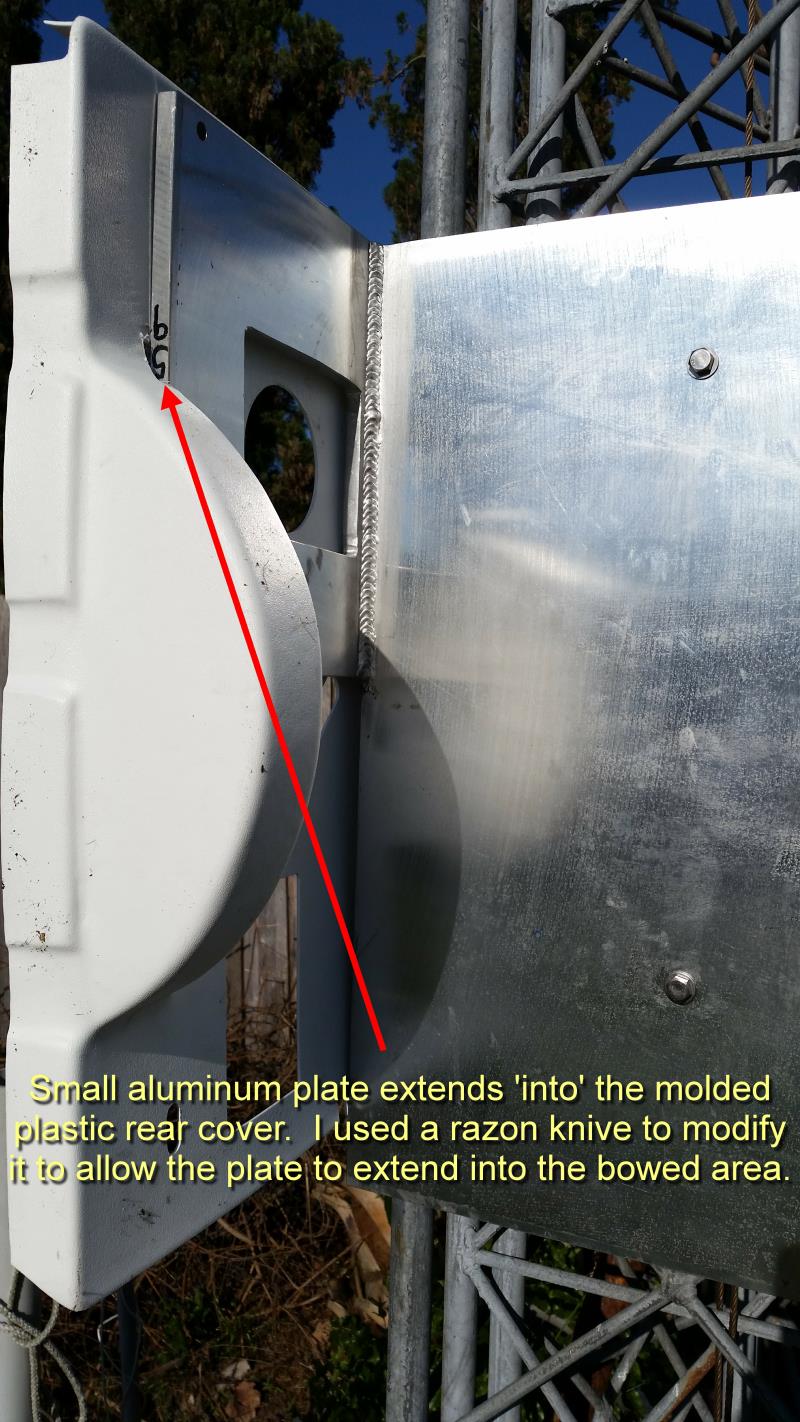

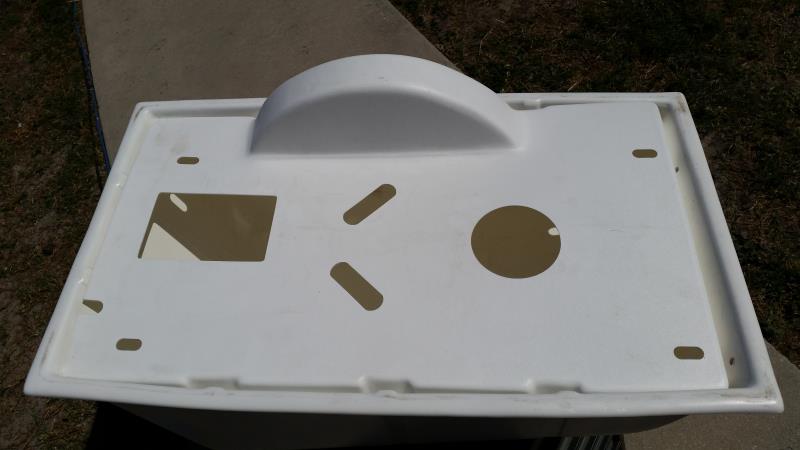

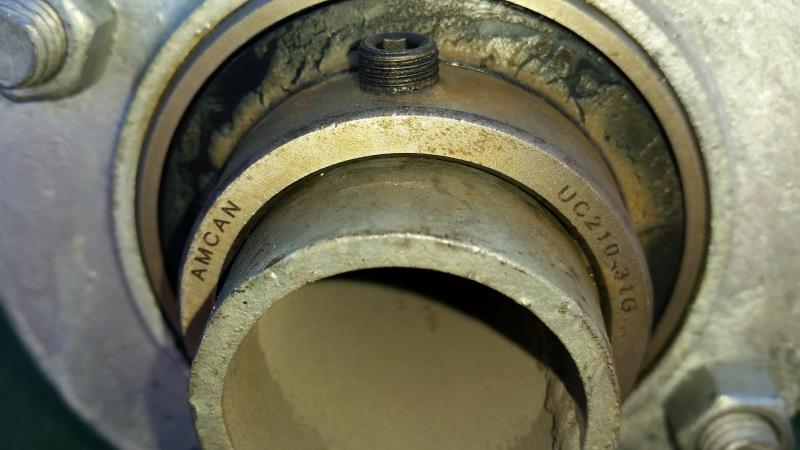

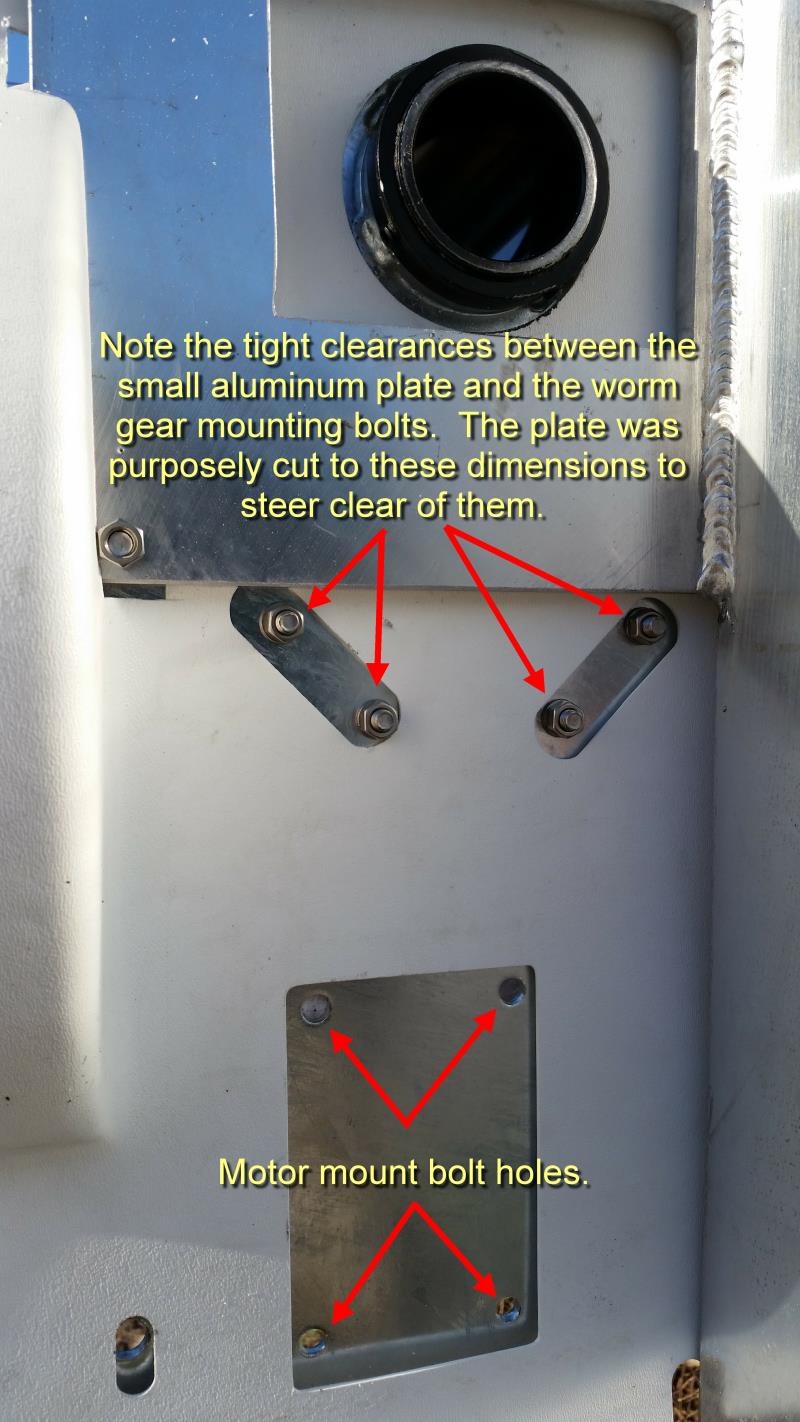

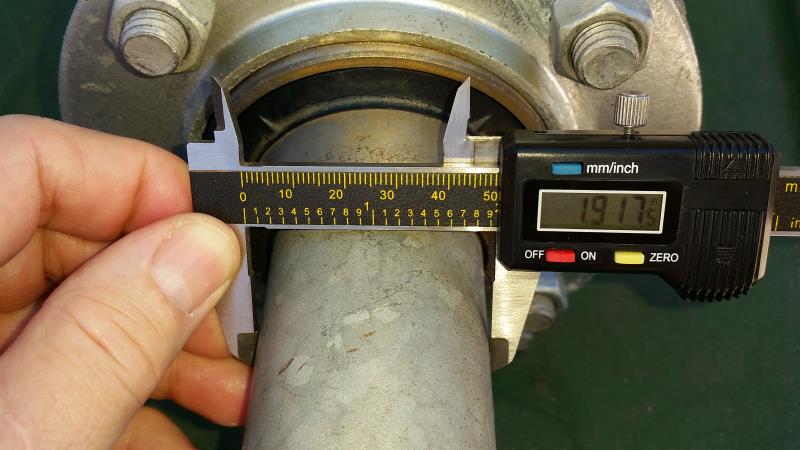

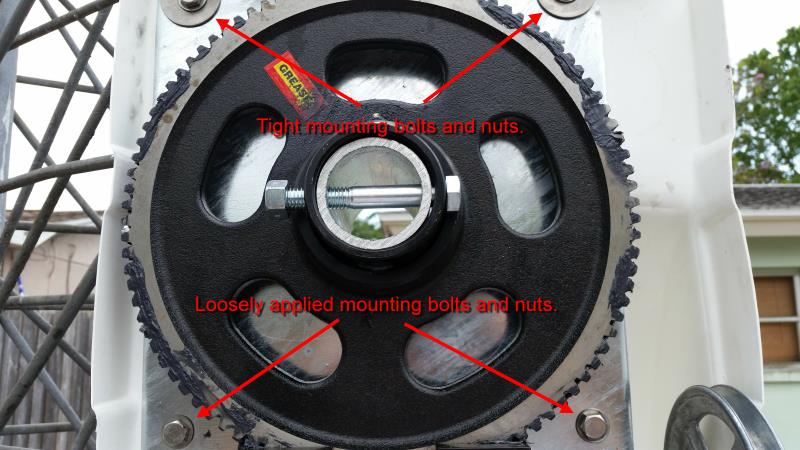

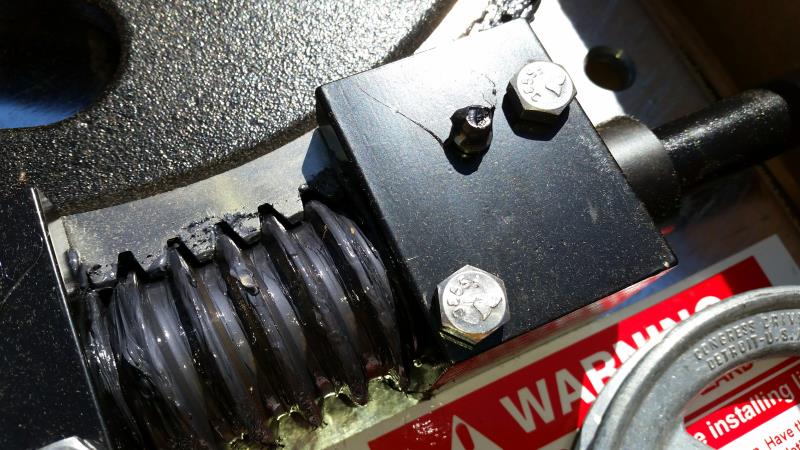

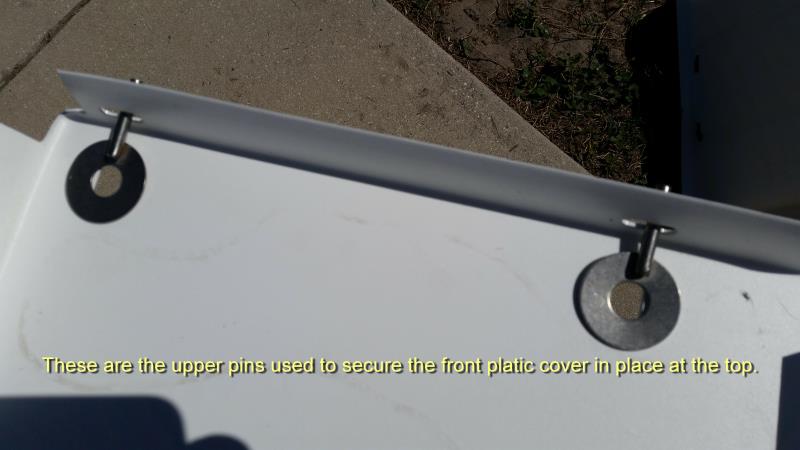

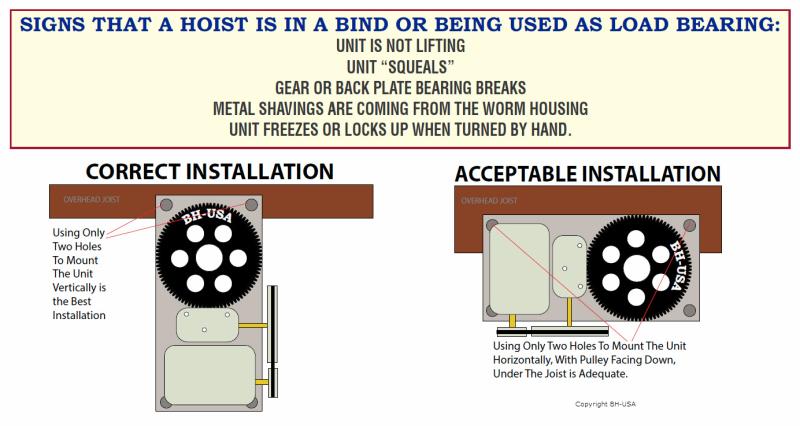

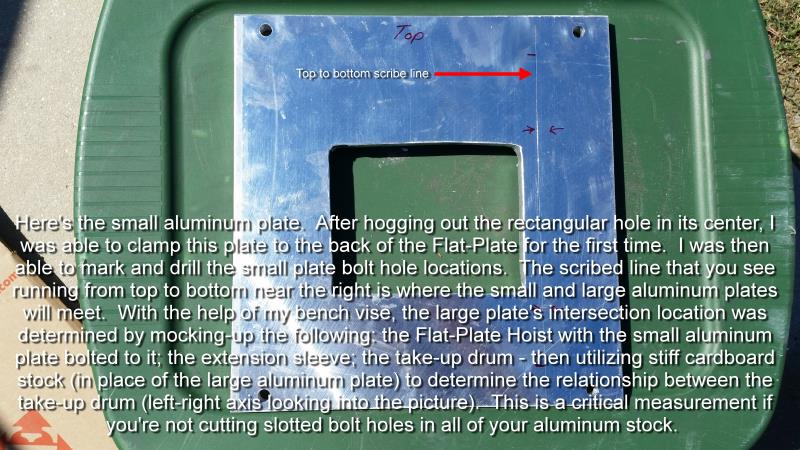

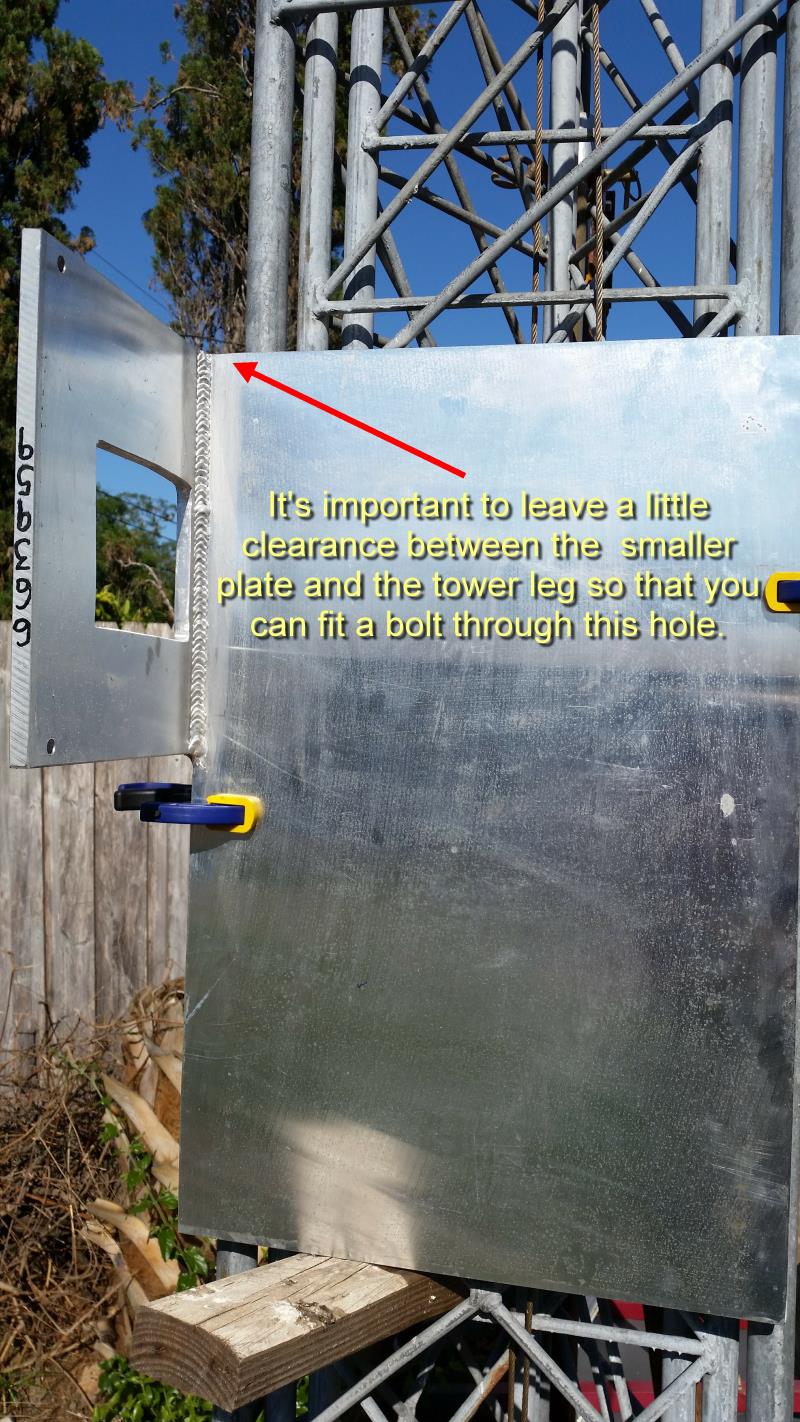

Here are some pictures - some with annotations of my Flat Plate Boat Hoist tower hoist project.  While I need to take the time to annotate below a clean copy of each picture - hopefully this quickly assembled group of pictures will give you some insight into what is involved in getting a project like this off the ground.  Please take note of the fact that I'm utilizing a very small 'large' V-belt pulley.  While most installations call for a 10"-12" large pulley for boat hoisting, Lunmar suggested that since my lift was a light one, that I could move to a smaller 5" pulley for added speed.  They were right.  It moves quickly with no strain.
